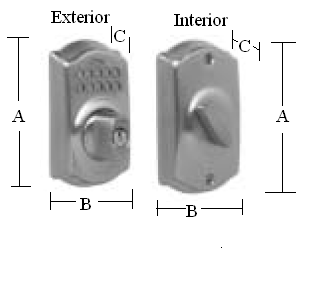

A - (Overall Height): 5.42 Inches
B - (Overall Width): 3.17 Inches
C - (Projection From Door): 2.18 Inches
A - (Overall Height): 5.66 Inches
B - (Overall Width): 3.28 Inches
C - (Projection From Door): 1.84 Inches
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: 1-3/8" to 1-3/4"
CYLINDER: 5-pin Solid Brass / Pin and Tumbler
LATCH FACEPLATE: 1" x 2-1/4" Round Corner
STRIKE PLATES: 1-1/8" x 2-3/4" Round Corner
LATCH BOLT: Full 1" Throw.
DOOR HANDING: Reversible for right or left hand doors.
ANSI/BHMA: A156.5 Grade 2.
